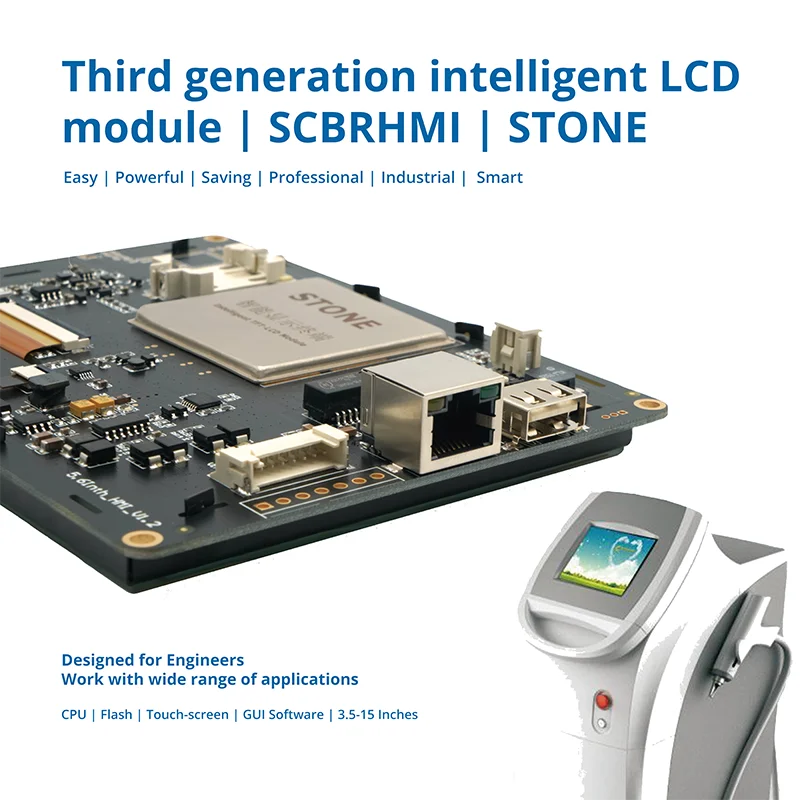

Brand Name STONE
Origin CN(Origin)
Model Number STWA070WT-01
Type TFT
Display Mode 800:1
is_customized Yes
Display Scale 4:3
Resolution 800*480
Colors 262K
CPU 1GB Hz Cortex A8
Brightness 1000 cd/m2
Backlight LED
Visual Angel IPS
Interface RS232/RS422/RS485/TTL
Network Ethernet / WIFI / BT
Touch Panel 4-wire resistance
LCD Class A+
Flash Memory 256M
Working Voltage 5-28V
Aging Test 48 Hours
Size 3.5-15 Inch Available
Backlight life 30000 Hours
Working Voltage 5-28V
Physical Parameter
Size
7 inch
Resolution
800×RGB×480
Pixel Spacing
0.0642(W) × 0.1790(H) mm
Color
262,144 colors (18 bit)
Viewing Area
154.08(W) × 85.92(H) mm
Display Dimension
156.2 mm× 89 mm

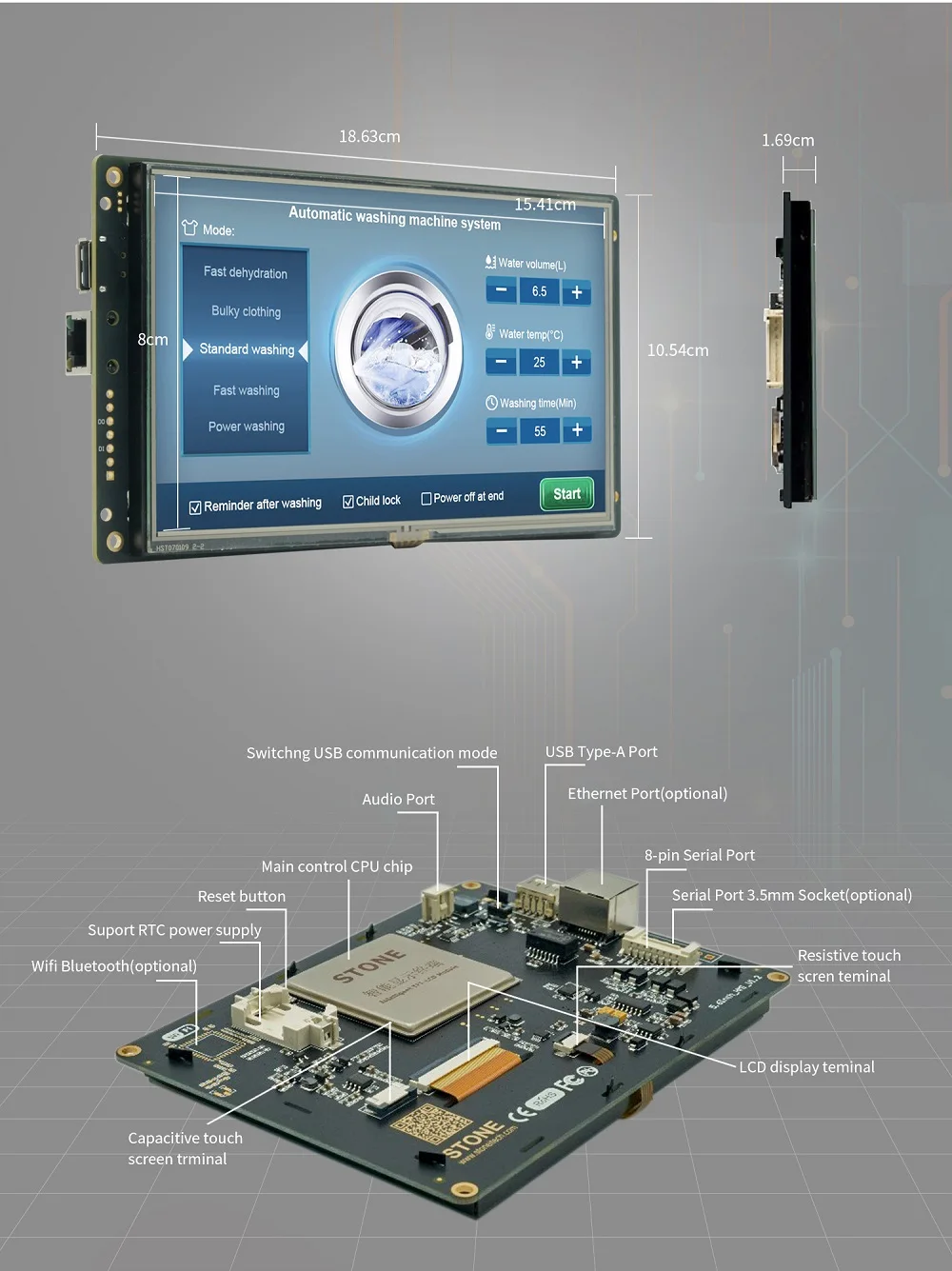

Overall Dimension

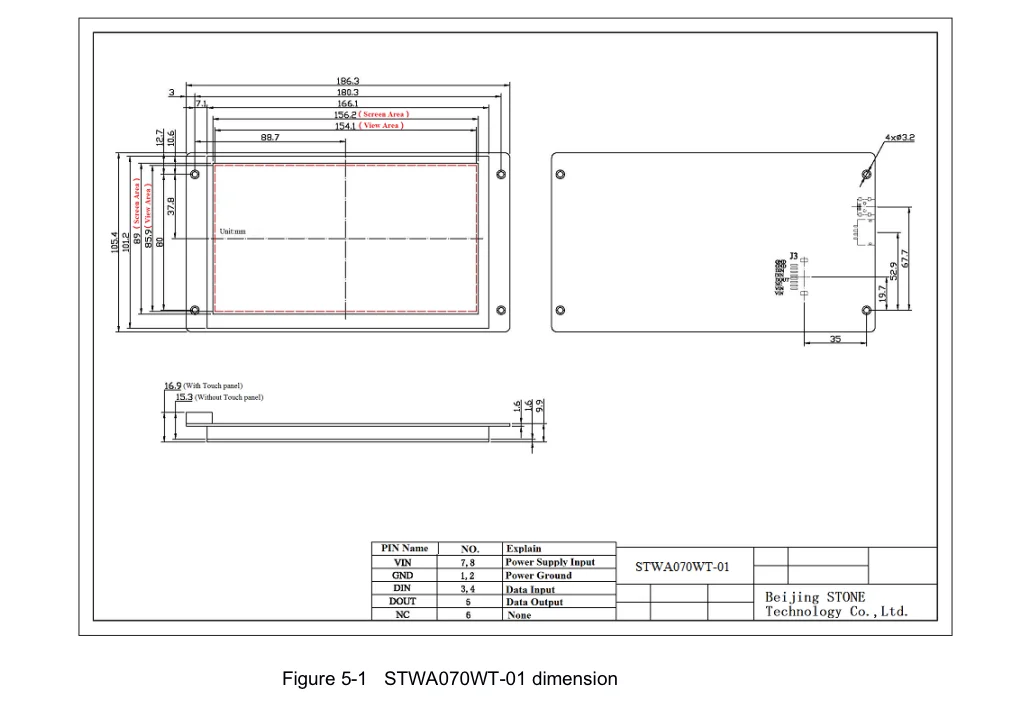

186.3 mm×105.4 mm×15.3mm
(Standard type)
186.4mmx105.5mmx23.8mm
(with Ethernet port)
Net Weight
325g
Display
Backlight Type
LED
Brightness
1000cd/m2
(Brightness can be adjustable in 100 levels)
Contrast
500:1
Backlight life
30,000 hours
Viewing Angle
70°/70°/50°/70°(L/R/U/D)
TFT Panel
A Class Industry Panel
Touch Screen
4 Wire Resistance Touch /Capacitive Touch / Without Touch Screen
Or without touch screen is optional.
Screen Mode：
Digital

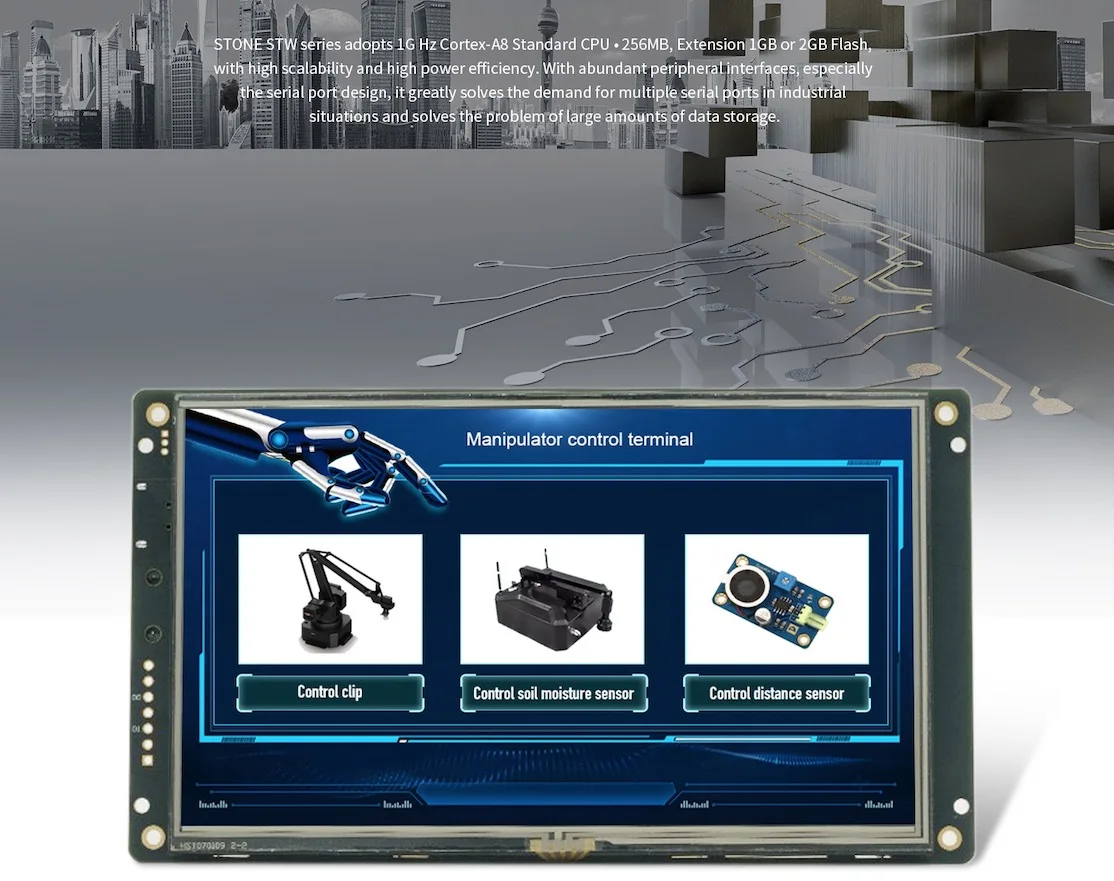

Processor
CPU
CortexA8
Refresh Rate
1G Hz
Max Frame rate
60 FPS
Memory
Flash Memory
Standard256MB, Extension 1GB or 2GB
Memory Amount for Image
According to the capability of the image, Suggest "PNG, BMP, JPG, SVG, GIF" format.
Interface
Serial Interface
RS232/RS422/RS485/TTL level
Ethernet interface
10M/100M (Optional)
Wireless interface
Wi-Fi/Bluetooth (Optional)

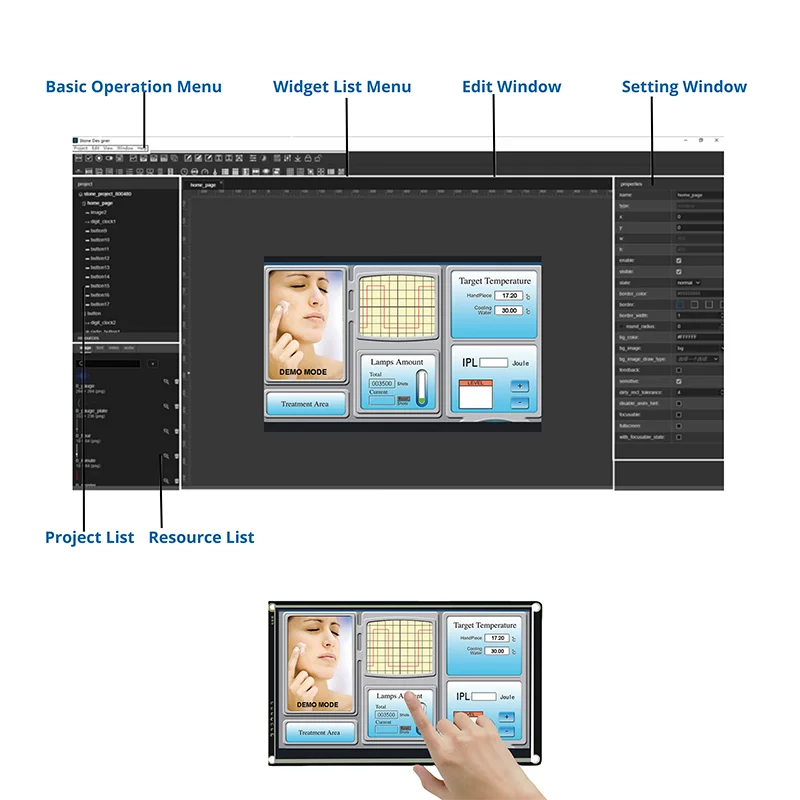

Project file downloading
USB2.0 portor U storage Disk
Power Supply
Rated voltage
+12V DC or +5V DC
Permissible voltage range
+7V DC...+28V DC or +5V DC
Max. permissible transients
+28V
Time between two transients
50 sec minimum
Internal Fuse
2A self-recovery fuse
Power consumption
2.6 W
Electrical Characteristics
Parameter
Condition
Min
Type
Max
Supply Current
VIN=12V
(Max brightness)
340mA
VIN=12V
(close brightness)
80mA
Baud Rate
115200 bps
Signal
Ambient Conditions
Max. permissible ambient temperature
Operation
Storage
-20℃～ +70℃
-30℃～ +80℃
Relative humidity
Operation
Storage
55℃,85%
60℃,90%
Shock loading
Operation
Storage
15 g/11 msec
25 g/6 msec
Vibration
Operation
Storage
0.035 mm (10 - 58 Hz)/ 1 g (58 - 500 Hz)
3.5 mm (5 - 8,5 Hz)/ 1 g (8.5 - 500 Hz)
Barometric pressure
Operation
Storage
706 to 1030 hPa
581 to 1030 hPa
Noise Immunity
Static discharge
(contact discharge/air discharge)
EN 61000-4-2
6 kV/8 kV
RF irradiation
EN 61000-4-3
10 V/m, 80% AM
1 kHz
Pulse modulation
ENV 50204
900 MHz ±5 MHz
10 V/meff., 50% ED, 200 Hz
RF conduction
EN 61000-4-6
150 kHz - 80 MHz
10 V, 80% AM, 1 kHz
Burst interference
Supply lines
Process data lines
Signal lines
EN 61000-4-4
2kV
2kV
1kV
Radio Interference
Radio interference level complying to
EN 55011
Class A

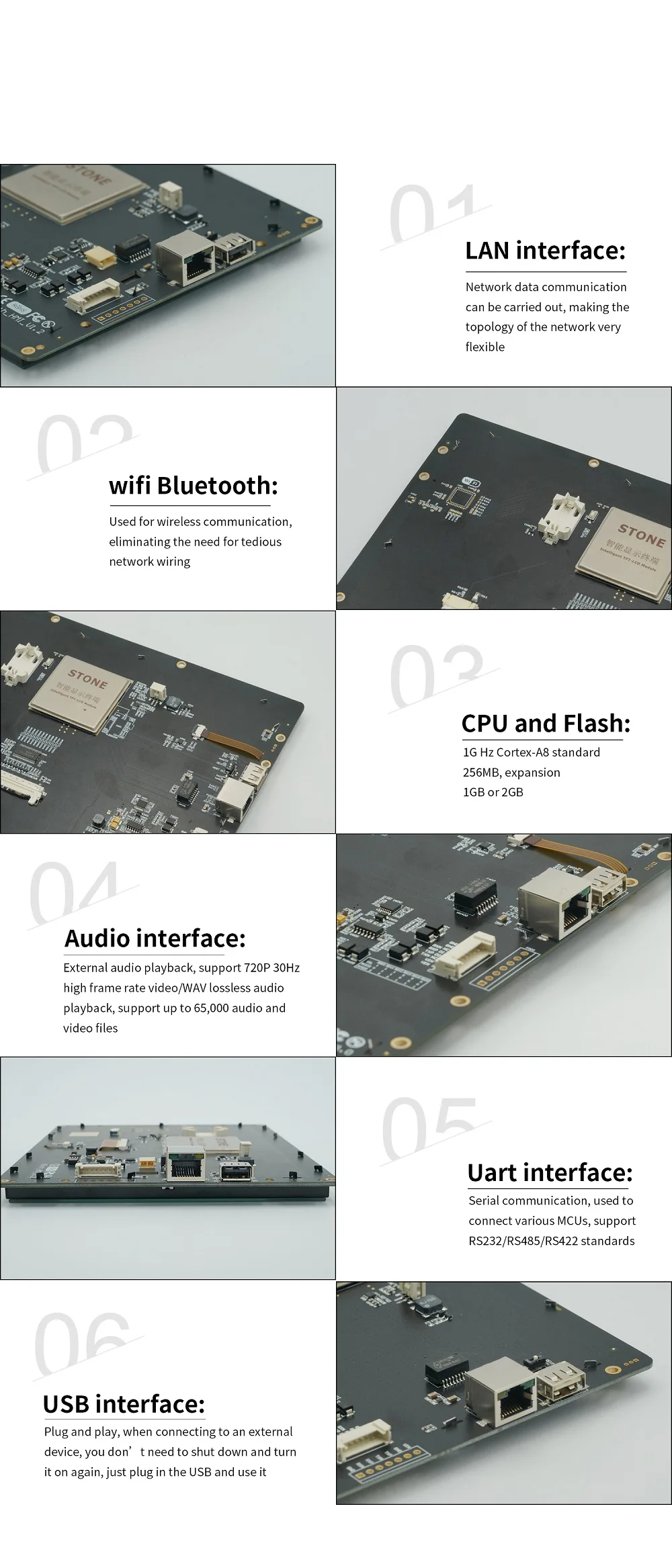

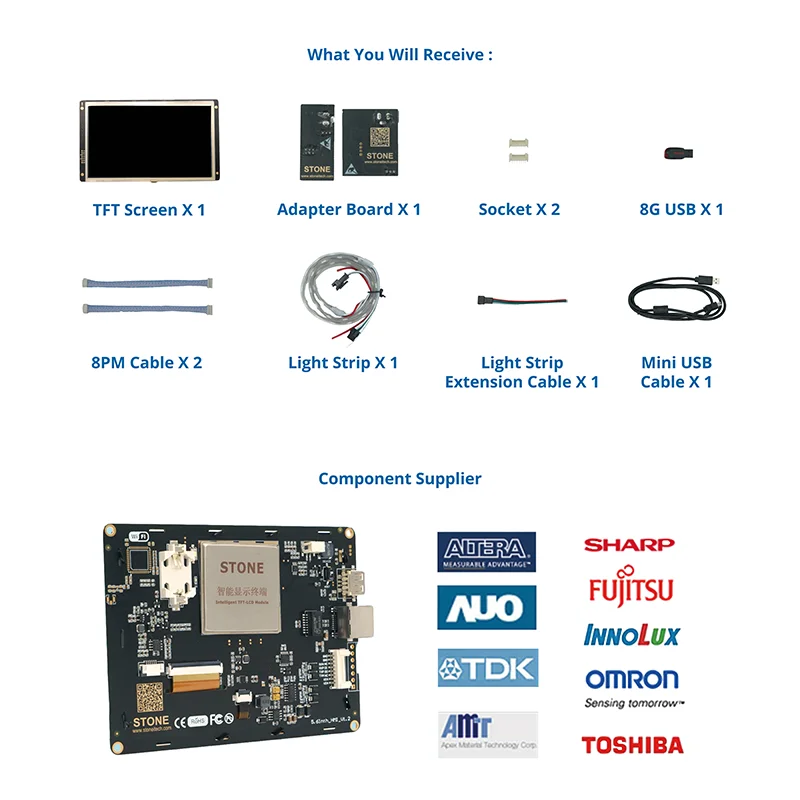

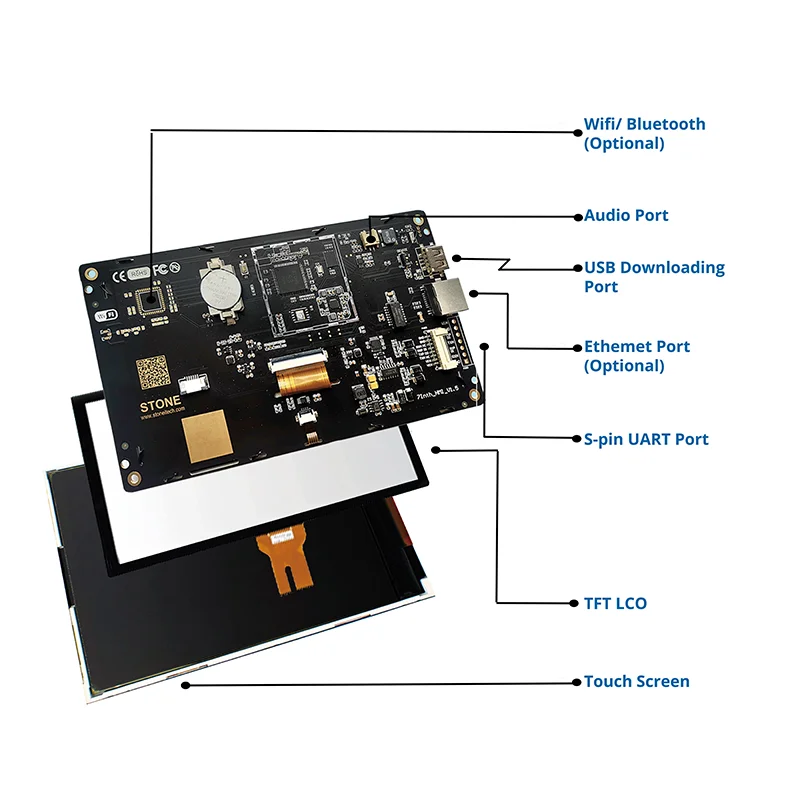

Support Device
UART Port
Support
RS232/RS422/RS485/TTL
Network Port
Support
Ethernet Port / Wi-Fi/Bluetooth
Flash Memory
Support
Standard256MB, Extend1GB or 2GB
Buzzer
Support
RTC
Support
USB port
Support
Online Download By USB Cable
U Storage Disk Interface
Support.
Offline Download or Copy User Data
Touch Screen
4 Wire Resistance / Capacitive
Vector Font
Standard TTF Format
Support PNG/JPG/BMP/SVG/GIF Format
Audio Interface
SupportWAV format
The length of single audio file is not limited,theoretically up to 4096 audio files,speaker power is 8 ohms 2 watts or 4 ohms 3 watts

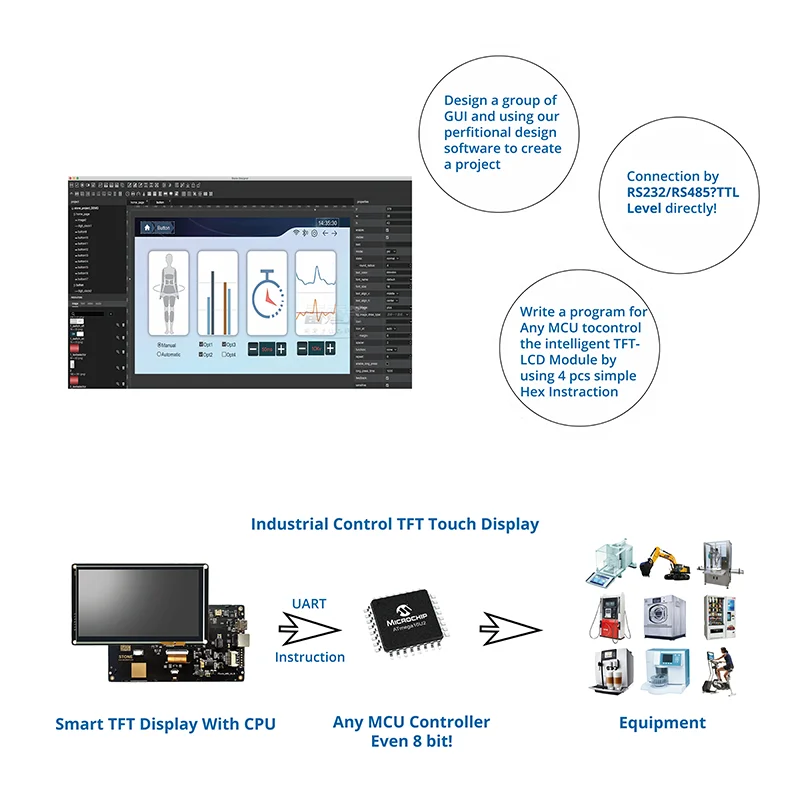

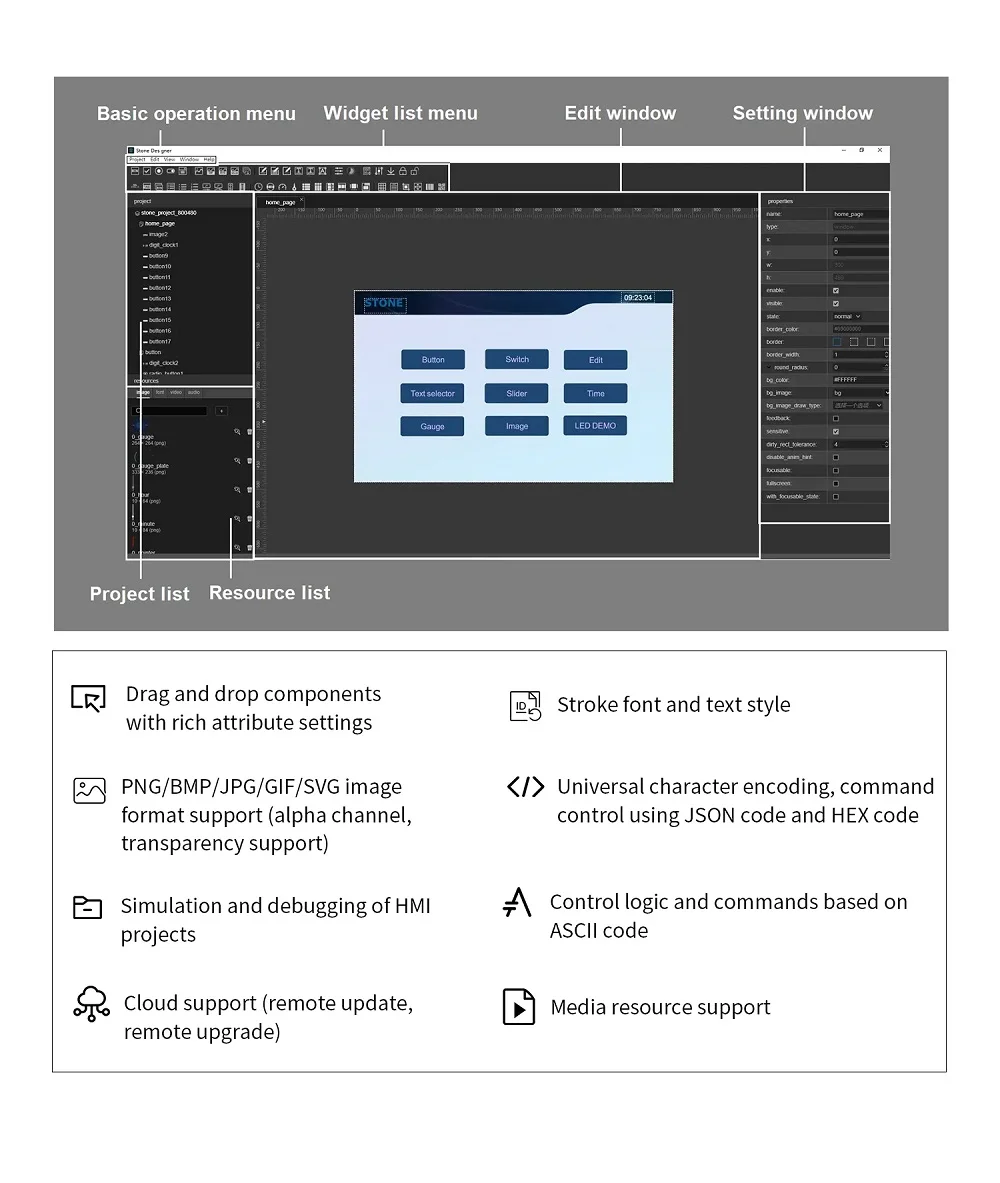

Command Set
Unified Simplified Command Sets
