LCD Modules>>>Electronic Components & Supplies
Brand Name STONE
Origin CN(Origin)
Model Number STWI070WT-01
Type TFT
Display Mode 500:1
is_customized Yes
CPU Cortex A8
Brightness cd/m2 300
Flash Memory 256M-2GB
Resolution 800*480
Display Scale 16:9
Interface RS232/RS422/RS485/TTL
Ships From
China
Allows network data communication, making the topology of the network very flexible
wifi Bluetooth:For wireless communication, eliminating tedious network wiring
1GHz Cortex-A8 standard 256MB, expandable 1GB or 2GB
Audio interface:External audio playback, support 720P 30Hz high frame rate video / WAV lossless audio playback
Serial communication, support RS232/RS485/RS422 interface
USB interface:Plug and play, when the external device, plug the USB can be used

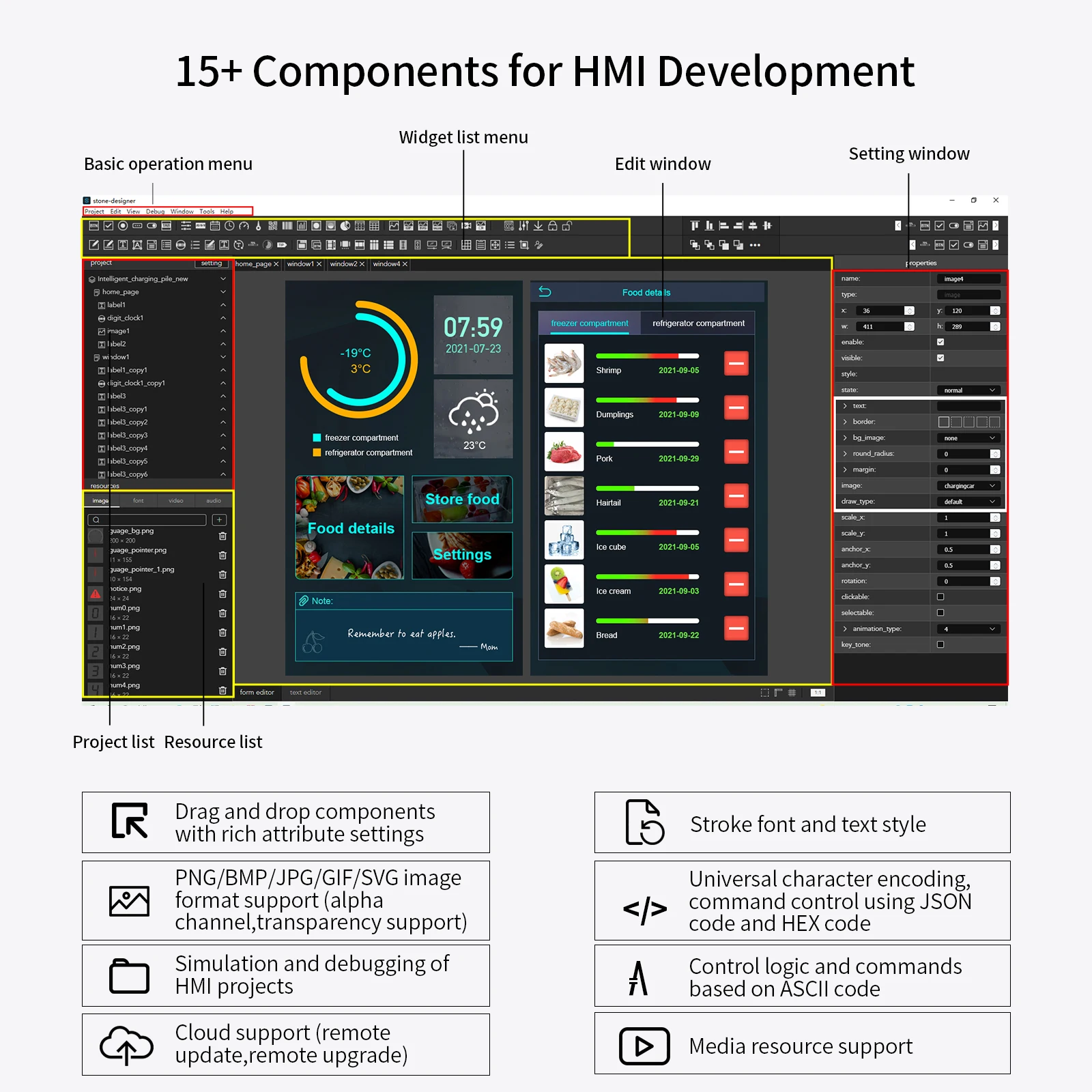

» Drag-and-drop components with rich property
» PNG/BMP/JPG/GIF/SVG image format support
(alpha channel, transparency support)
» Simulation and debugging of HMI projects
» Cloud support (remote updates, remote upgrades)
» Vector fonts and text styles
» Generic character encoding, command control
using JSON code and HEX code
» ASCII-based control logic and commands
» Media resource support
Simple and fast component functions
1. text 2. scrolling text 3. numbers 4. buttons 5. progress bar 6. images 7. cropping 8. meters 9. waveforms 10. image switching 11. keyboard 12. progress bar 13. slider 14. clock 15. USB download 16. video 17. audio, etc.
Component Property Settings
The component property settings provide you with a wealth of design options.
Example:Value property settings for the slider component slider1
Custom font styles
The font creation component can customize the value of any text property.
Example:Font color: #444444, type: framd, size: 18, position: centered on x-axis, centered on y-axis
Support for multimedia materials such as images, fonts, videos, and audio.
Easily add audio, video, and animation resources to your HMI projects. Edit the properties of these resources to achieve the HMI video presentation you want.
Simulation Debugging
You can debug your HMI project at any time, even without the STONE Display. The command input area allows you to send any STONE command to check the system feedback and HMI interaction.
ASCII-based control logicand instruction set
Simple ASCII text-based commands will greatly reduce your HMI project development effort.
Example:Set text:ST<{“cmd_code”: “set_text”, “type”: “label”, “widget”: “label1”, “text”: “Hello STONE”}>ETGet the text:ST<{“cmd_code”: “get_text”, “type”: “mledit”, “widget”: “mledit”}>ET“set_text”represents the command function code“type”: “label” means the type of the control is label“widget”:” label1″means the actual name of the control is label1“text”:” Hello STONE”means that the text is Hello STONE
PCB thickness and color: thickness 2.0mm more reliable,advanced sunken gold process, in line with ROHS, industrial motherboard level materials.
Support cross-platform, support Windows, macOS, Linux operating systems.
High strength to adapt to the environment,-30° low-temperature normal operation,80° high-temperature normal operationhigh strength to adapt to the working environmentso that you work production worry-free.
The 3.5-inch Display Module screen adopts the original screen imported from Qunar.Color 18 bit (262K), TTF format vector font,saturated color Even display brightness, fine screenTo present you with a higher quality visual experience.
operating principle
STONE Smart TFT-LCD module communicates with the customer’s MCU/CPU/FPGA/PLC.It communicates with the customer’s MCU/CPU/FPGA/PLC through commands (JSON commands and HEX codes),and the MCU will control the work of its connected devices according to the commands received.

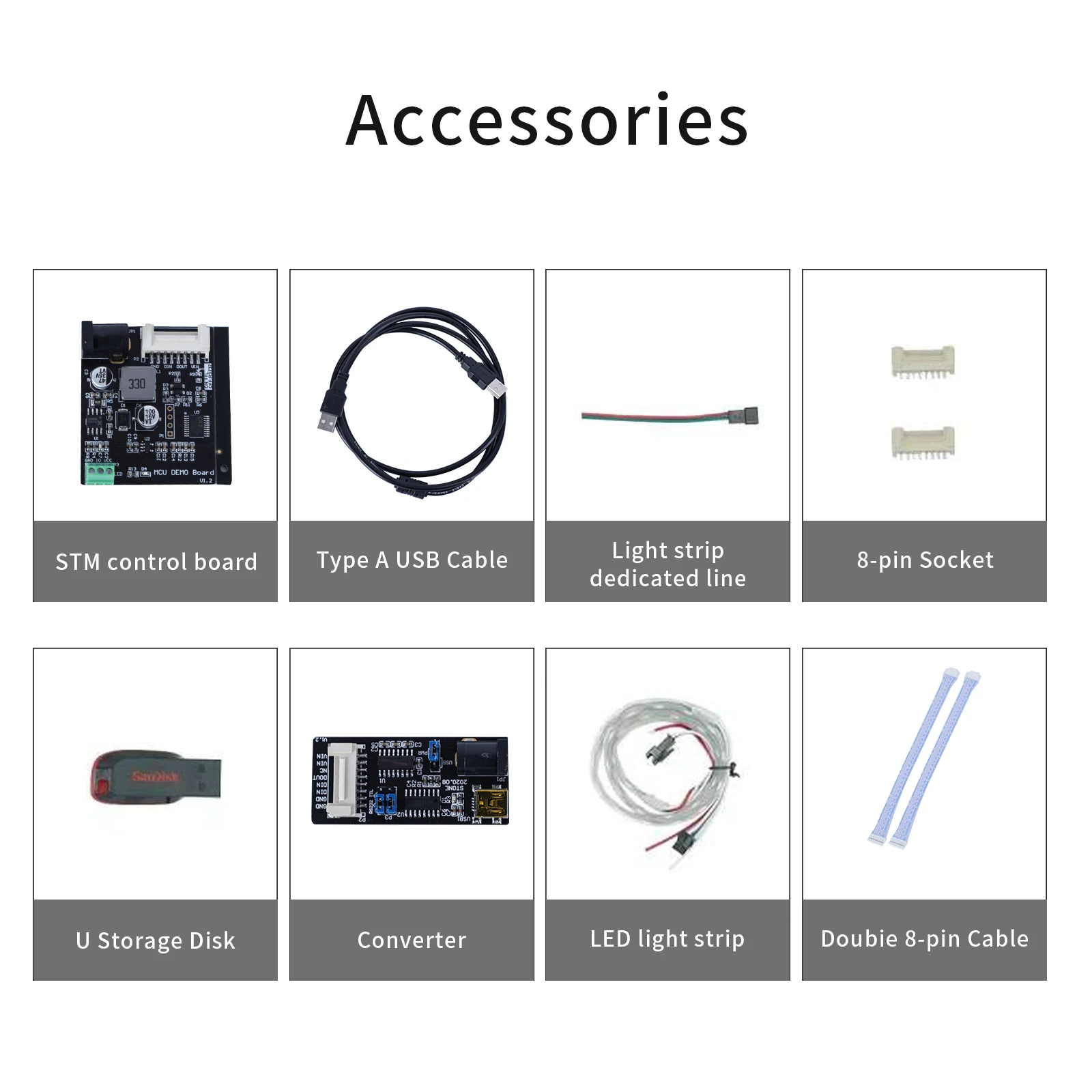

Accessories
Data Sheet
Instruction Set
Editor’s Guide
CE Certification
ROHS certification
