Brand Name BAOFENG
Battery Capacity(mAh) 1800
Is_Display Yes
Waterproof / Water-Resistant No
Walkie Talkie Type Portable
Maximum Range 3km-5km
Output Power(w) 3w-5w
Model Number UV-5R
Frequency Range Dual Band 136-174MHz & 400-520MHz
Dimensions 109.5x 59.5x 34.3mm
Storage Channel 128
Material Plastic
Output Power 5W/1W
Channel Spacing 2.5/5/6.25/10/12.5/20/25KHz
Battery Type DC 7.4V Li-ion 1800mAh
Weight Approx.225g
Color
Plug standard
EURO
BRITISH
American
baofeng walkie talkie uv-5r dualband two way radio VHF/UHF 136-174MHz & 400-520MHz FM Portable Transceiver with earpiece
Features:
Frequency Range:136-174 & 400-520MHz Dual Band, Dual Display, Dual Frequency,Dual Standby Output Power:5/1Watt 128 Storage Channels 50 CTCSS and 104 CDCSS Buit-in Vox Function 1750Hz Brust Tone FM Radio(65.0MHz-108.0MHz) LED Flashlight Larger LCD Display High/Low RF Power Switchable 25KHz/12.5KHz Switchtable Emergency Alert Low Battery Alert Battery Saver Time-out Timer Keypad Lock Monitor Channel Channel Step:2.5/5/6.25/10/12.5/25KHz PC ProgrammingSpecifications:
Dual band, dual display A/B band independent operation 128 groups channels storage Shortcut menu operation mode VFO & Memory channels scan Emergency Alarm Tri-color background light selectable 0~9 grades VOX selectable PTT & ANI ID FM radio and 25 stations storage 1750Hz Brust Tone Time-out Timer Channel Monitor Battery Saver Keypad Lock Channel Step: 2.5/5/6.25/10/12.5/25KHz Low Battery Alert ROGER SET Emergency Alert 25KHz/12.5KHz Switchable FM Radio (65.0MHz-108.0MHz) Large LCD Display LED Flashlight Hight /Low RF Power Switchable Voice companding 50 CTCSS/ 104DCS coder & tone searching dual standby PC programmable Wide/Narrow Band(25kHz/12.5kHz) Transmitter time-out timer(TOT) High/Low TX power selectable Busy channel lock-out(BCLO) Specifications General Frequency Range 65-108MHz(FM Receive only) 136-174MHZ and 400-520MHZ (TX/RX) Channel No. 128 Frequency Stability ±2.5ppm Antenna High gain DualBand antenna Antenna Impedance 50Ω Operating Voltage DC 7.4V Mode of operation Simple or semi-duplex Dimension(W x H x D) 100 x 52 x 32 mm Weight 250g(including battery, antenna) Antenna : SMA -Female Earpiece / mic type : Kenwood Plug type Transmitter Output power 5W / 1W (Max 5W) Modulation Mode 16kΦF3E / 11kΦF3E Maximum deviation 5kHz(Wide) / 2.5kHz(Narrow) Spurious Radiation 7μW Adjacent Ch. power ≤-65dB(Wide) / ≤-60dB(Narrow) Pre-emphasis characteristics 6dB Current ≤1.6A(5W) CTCSS/DCS deviation 0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow) Intermediation sensitivity 8-12mv Intermediation distortion ≤10%Package Contain:
1× UV-5R (VHF136-174 & UHF 400-520Mhz)
1× 7.4V 1800mah Li-ion Battery Pack
1× Dual Band Antenna
1× Belt Clip
1× ENG Manual
1× Desktop Charger ( 100V ~ 240V ) with Correct Adapter for your Country
1× Earpiece
1× Handstrap

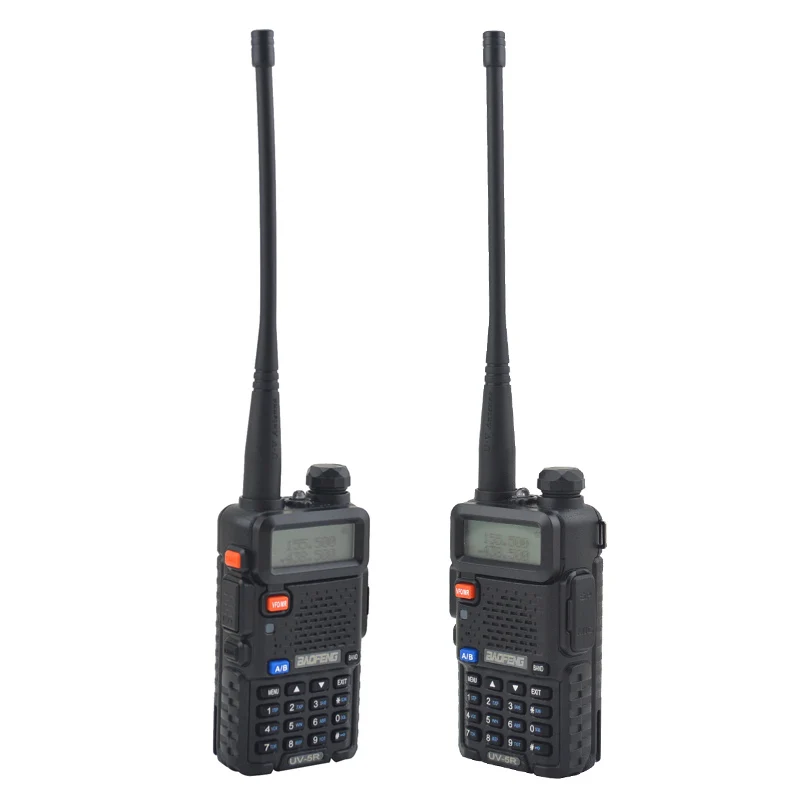

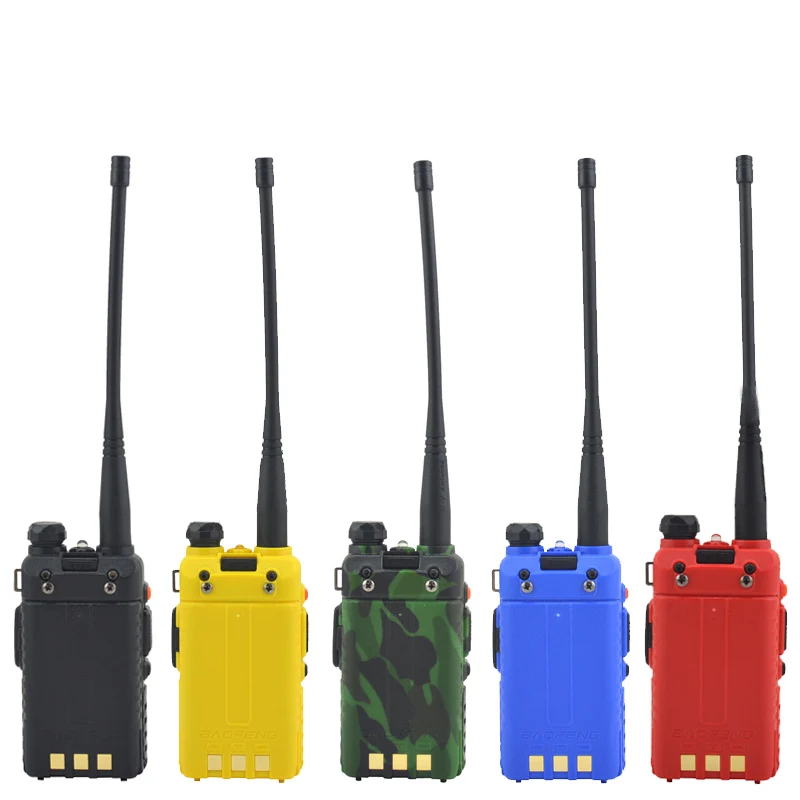

Item Picture:
