Electric Lock>>>Security & Protection
Brand Name SARY
Origin CN(Origin)
Certification None
Model Number XG-07E
Color
DC12V
DC3V
DC5V

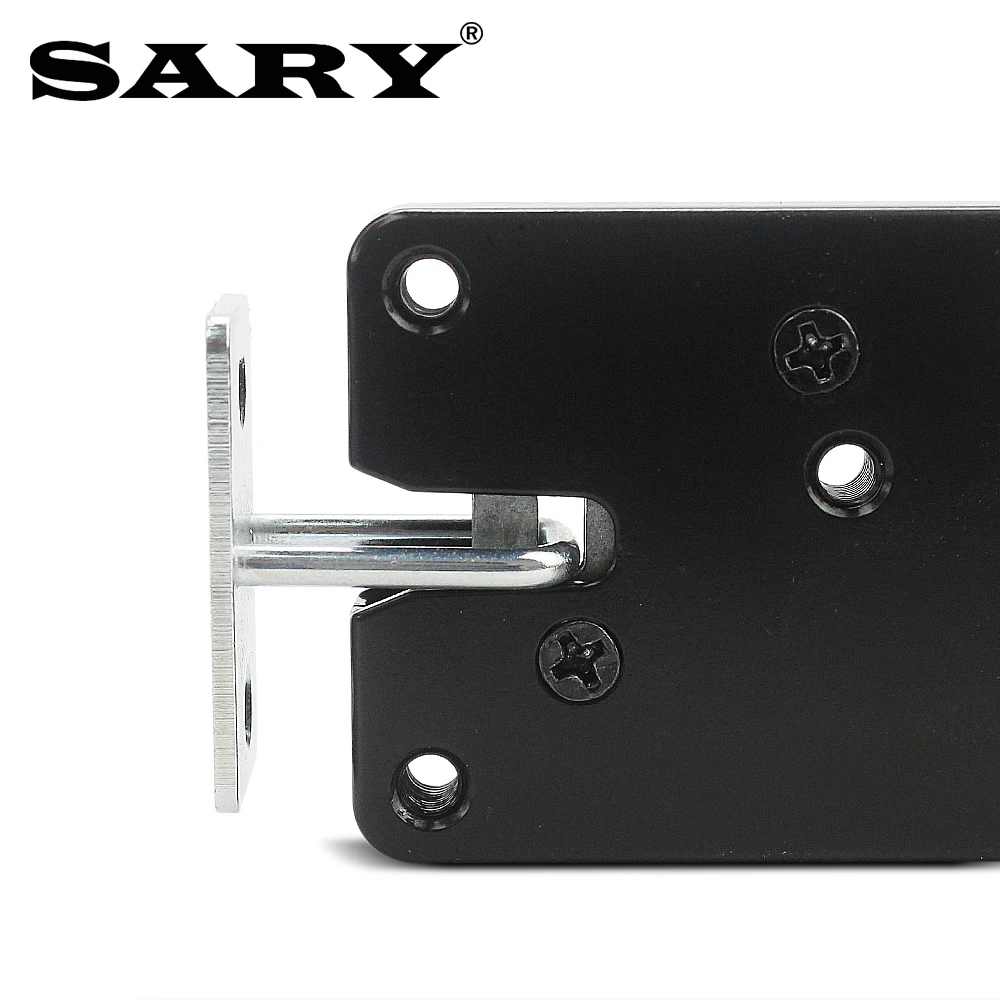

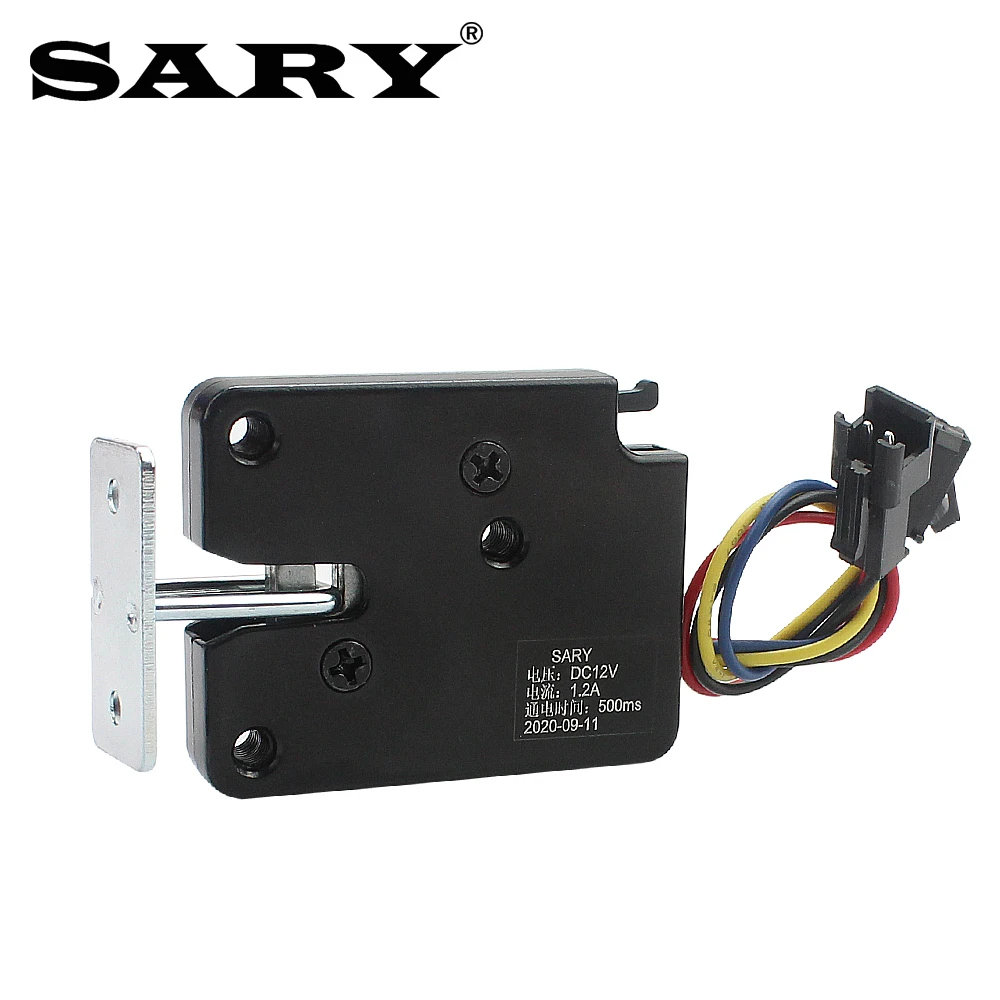

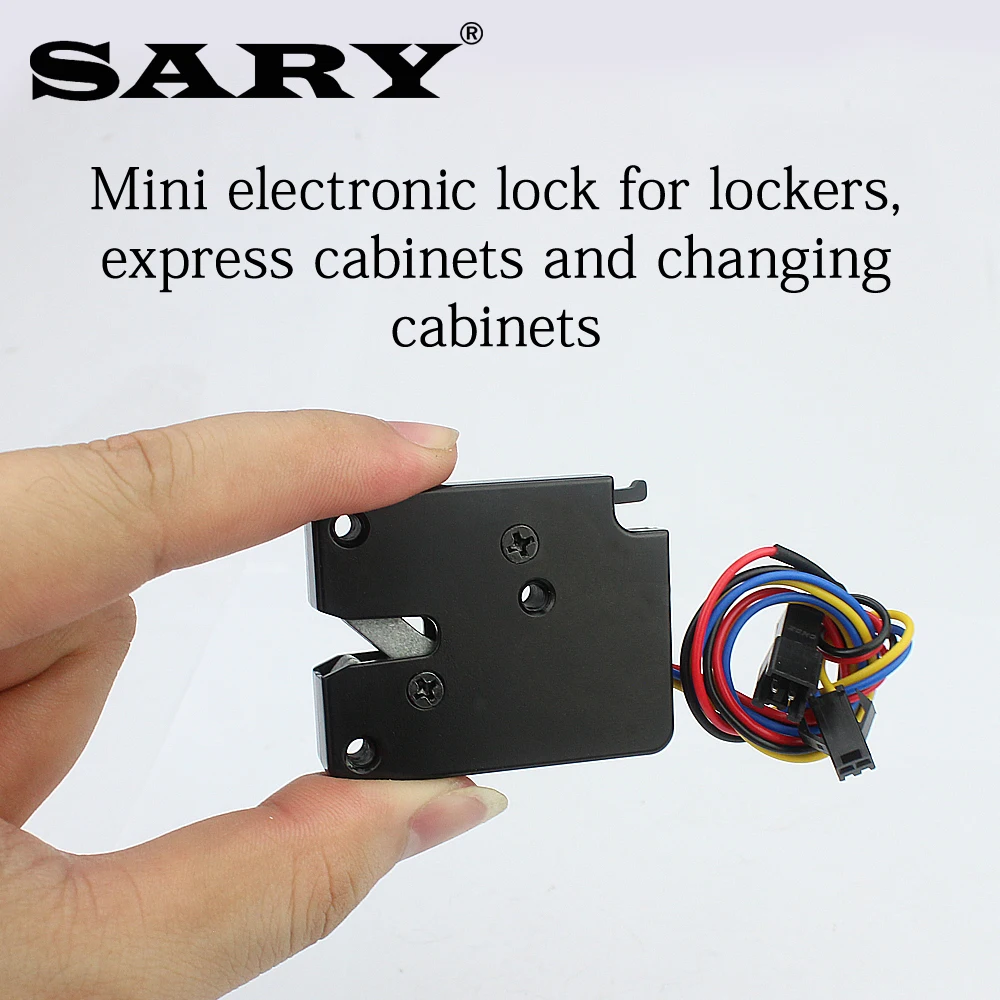

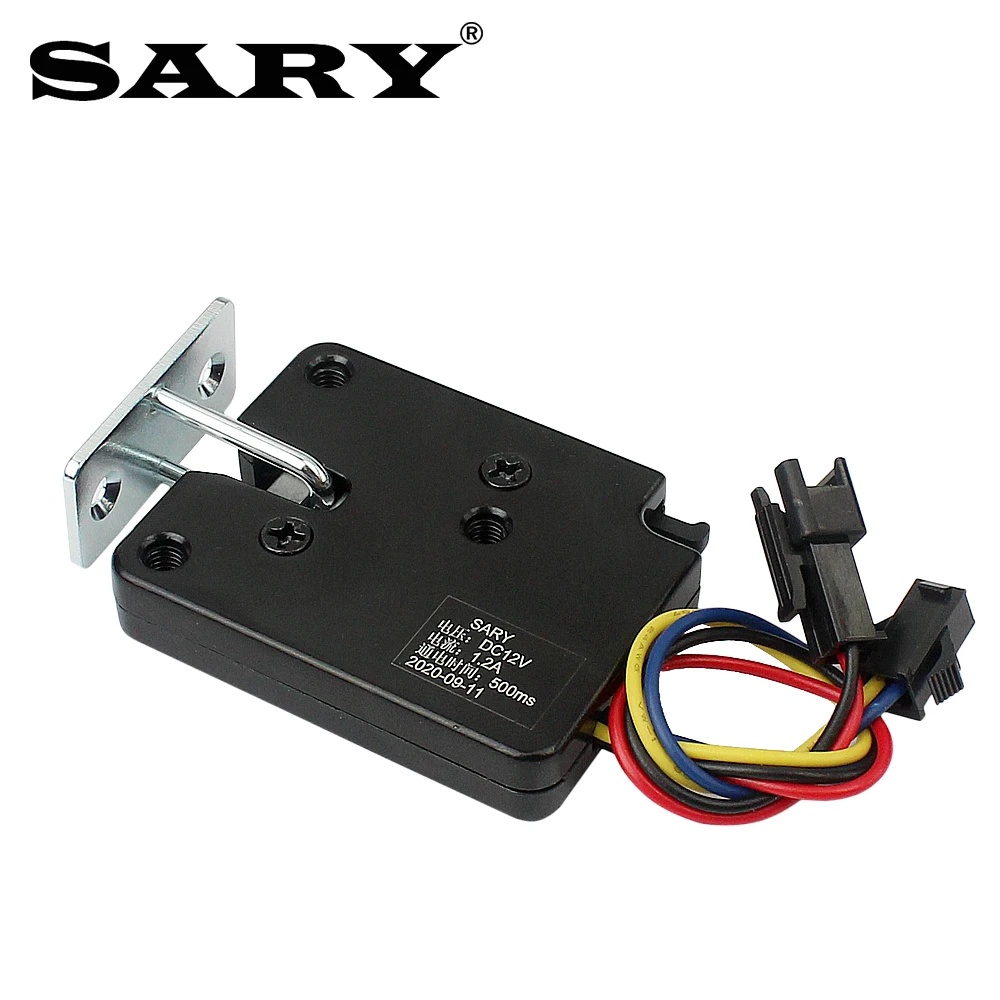

Description:The electronic lock is suitable for delivery lock, express cabinet, supermarket locker or vending machine, locker, etc. The case is made of zinc alloy with graphene titanium wire as unlocking power. Sturdy and safe to use.Features:Electronic-controlled lock has low power consumption, IPX5 waterproof level, and can be driven by AA battery.Safety: the lock hook can withstand 50kg of traction, no obvious permanent deformation, shockproof, anti-pry.Compact, easy to install, free of left and right, front and rear side restrictions, and allows mechanical tensioning to unlock position.Self-elastic design: suitable for doors weighing 0.5 ~ 2kg.Application: lockers, express cabinets, vending machines, locker, etc.Specifications:Condition: 100% brand newMain material: Zinc alloySurface treatment: Electroplating electrophoretic paint (more than 500 hours of neutral frog experiment)Working mode: independent (turn off the power and close the door; Unlock after switching on the power.)Electrical parameters: DC 12V 1A (automatic reduction of current after unlocking)Mechanical life: about 100,000 cycles under designed load conditionsLock hook strength: 50kg force (no permanent deformation)Ambient temperature: -25℃ ~ 45℃Size: approx. 5 x 4 x 1CMPacking weight: 90gFeedback signal line description: this is a short circuit signal switch. It is disconnected when unlocked and connected when lockedDescription:It is recommended to control the power-on time within 1-2S. If the power-on time is too long, the internal components will be damaged.Package includes:1 X electric control lock and lock buackle(with detection switch)Instructions for use: It is recommended that the power-on time should not exceed 3 seconds, otherwise the internal components may be damaged
