Surveillance Cameras>>>Security & Protection
Brand Name KHUDAYAROV
Type AHD Camera
Supported Operating Systems Windows Vista
Supported Operating Systems Windows 8
Supported Operating Systems Windows 7
Supported Operating Systems Windows 98
Supported Operating Systems windows xp
High Definition 2.0 Megapixels
Lens (mm) 8mm
Lens (mm) 6mm
Lens (mm) 3.6mm
Lens (mm) 12mm
Lens (mm) 16mm
Lens (mm) 2.8mm
Lens (mm) 4mm
Lens (mm) 25mm
Lens (mm) 1.44mm
Lens (mm) 1.7mm
Style Module
Certification CE
Connectivity Closed System/CCTV Wired
Smart home platform Other
Origin CN(Origin)
Power Consumption(W) 12V 1A
Color black
Minimum Illumination(Lux) 0.0001Lux
Sensor CCD
Sensor Brand SONY
Special Features Vandal-proof
Alarm Action Local Alarm
Video Compression Format H.264
is_customized Yes
Power Supply(V) 12V
Model Number b20
Technology Infrared
Dimensions (L x W x D)(mm) 32*32mm/38*38mm
Supported Mobile Systems Windows Mobile
Supported Mobile Systems Android
Supported Mobile Systems Symbian
Signal System
PAL
NTSC
Focus
2.8mm
3.6mm
4mm
6mm
8mm
12mm
16mm
2.8-12mm(manual)
2.1mm
1.7mm
No Lens
The default is standard AHD camera.
It also can works with standard DVR,Just push the "left" button for 5 seconds and it switches to standard DVR mode.
Push the "right" button for 5 seconds and it switches to AHD DVR mode.
PAL/NTSCin one: Set on OSD menu
Feature:

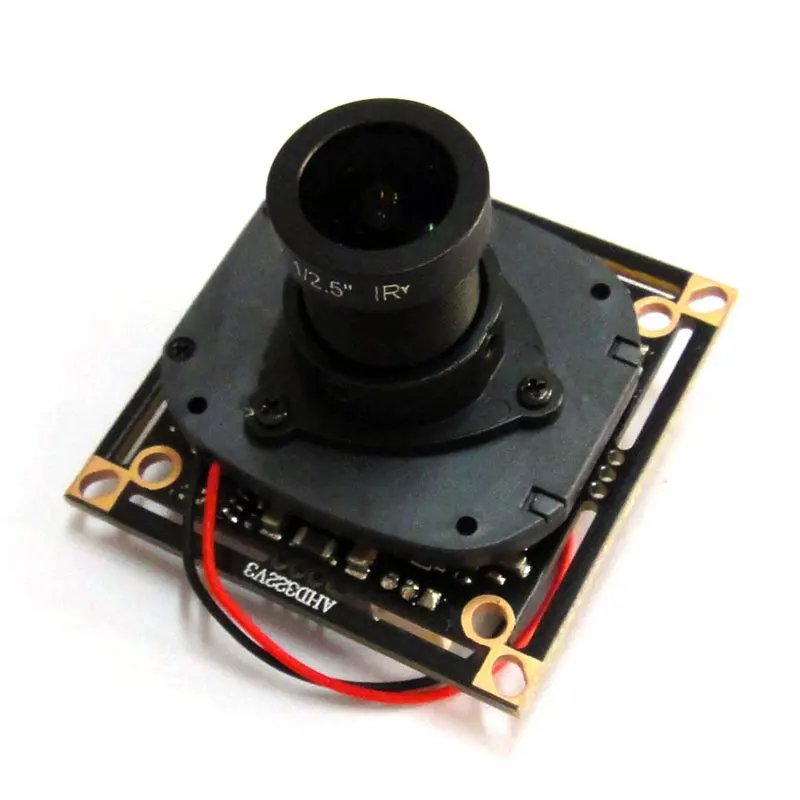

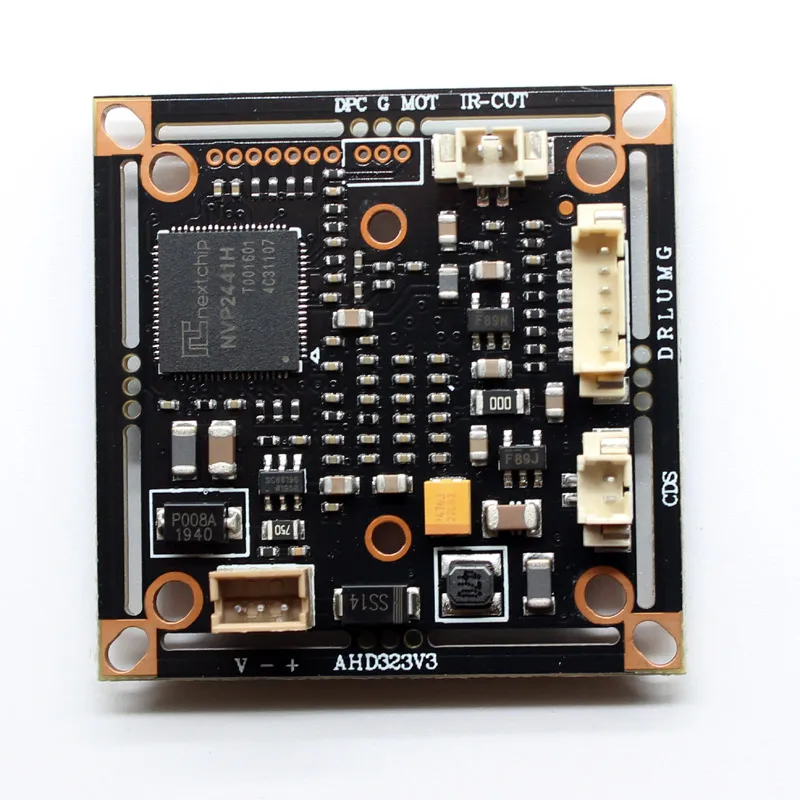

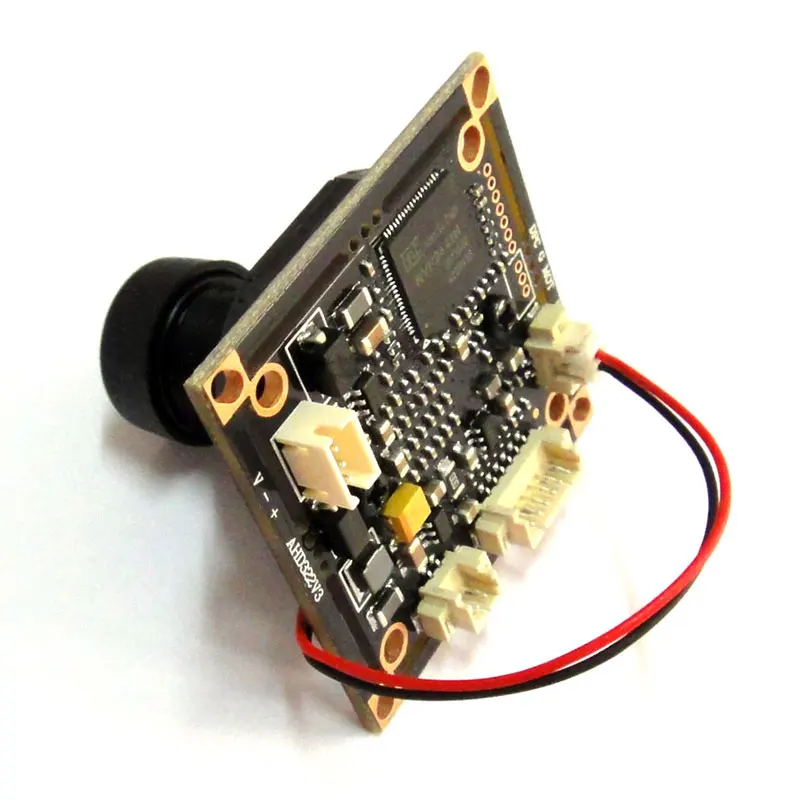

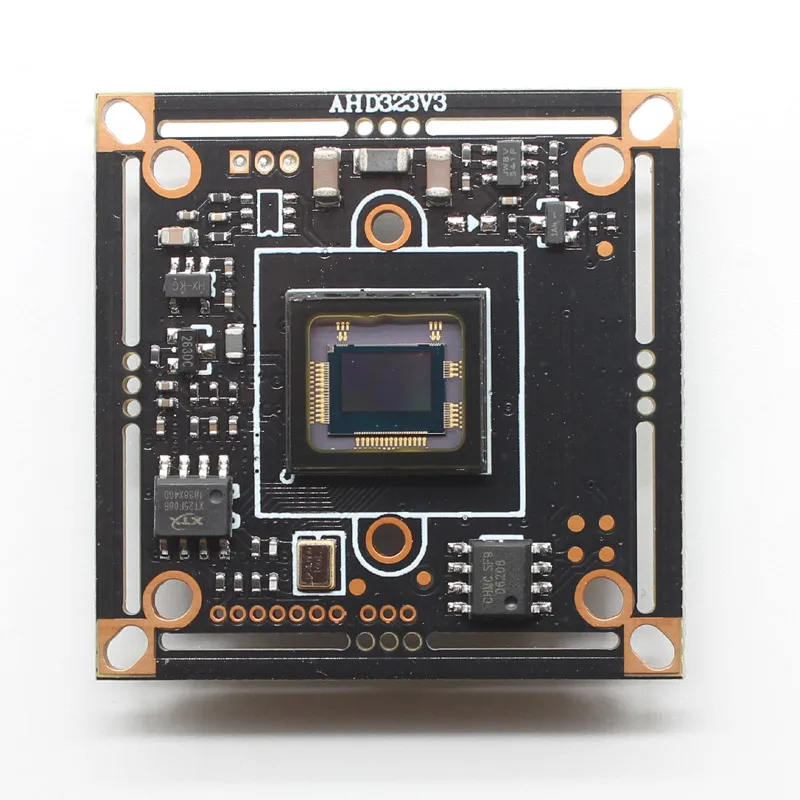

1/2.9" AHD SONY IMX323 +NVP2441 CMOS Senor Starlight Low illuminationmodule;
Video Resolution:1920*1080;
Advanced Y/C signal separation technology, analog filtering technology and 3D noise reduction technology;
NTSC&PAL in one, AHD mode, CVBs 960H mode, Switch freely;
Size: 38*38mm.
Lens: 1080p M12 3mp Lens,Optional: 2.8mm/3.6mm/4.2mm/6mm/8mm/12mm/16mm
Specifications:
Sensor
1/2.9 inch Sony IMX323 sensor
Video Resolution
PAL/NTSC: 1920*1080
Minimum Illumination
Color：0.0001Lux@（F1.2，AGC ON），0Lux with IRBlack&White：0.0001Lux@（F1.2，AGC ON），0Lux with IR
Photosensitive Resistance
1 photosensitive resistance interface,support the photosensitive resistor input signal and image,IR-CUT, infrared lamp linkage
Shutter
1/50(1/60) seconds to 1/10,000 seconds
Day and Night Function
Support IR-CUT
Lens Parameters
C/CS interface, M12 lens optional
Synchronous Mode
inter-sync
Noise-signal Ratio
>58dB
Temperature and Humidity
-10℃~60℃, humidity is less than 90% (no condensation)
Power
DC12V±10%
Consumption
<5W
Size
Standard 32*32 positioning hole, compatible with 38*38 hole

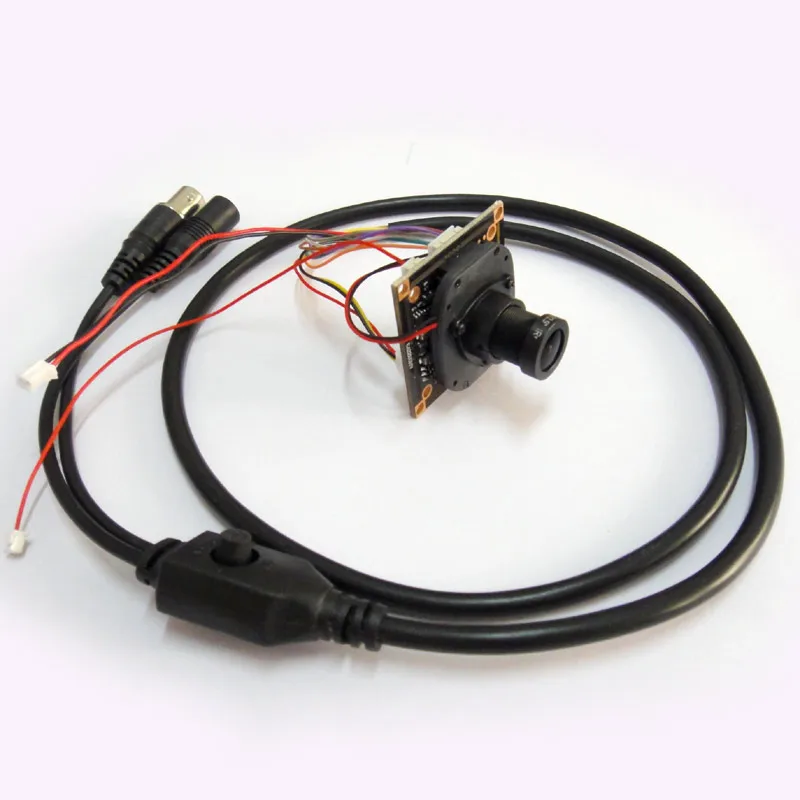

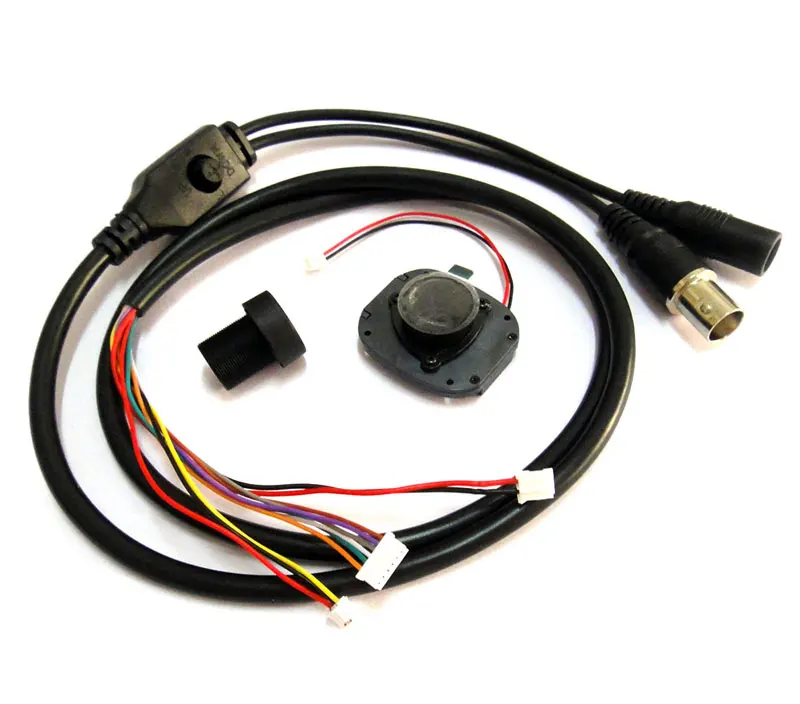

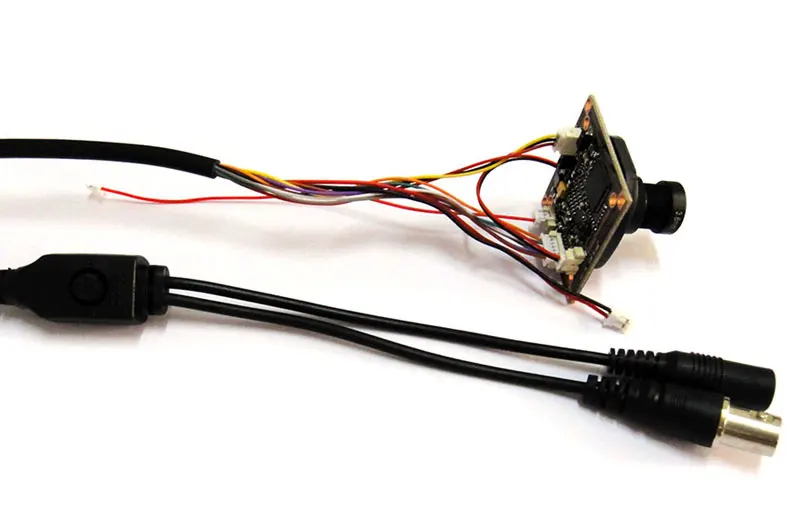

Packaging included:1x 1/2.9" AHD SONY IMX323+2441 CCTV Camera Module1x HD 1080p 3mp lens1x IR Cut1x OSD Menu Video Power Cable
Warranty Term: One Year Warranty
If you need to buy more goods, but the price is not cheap enough, please contact us!

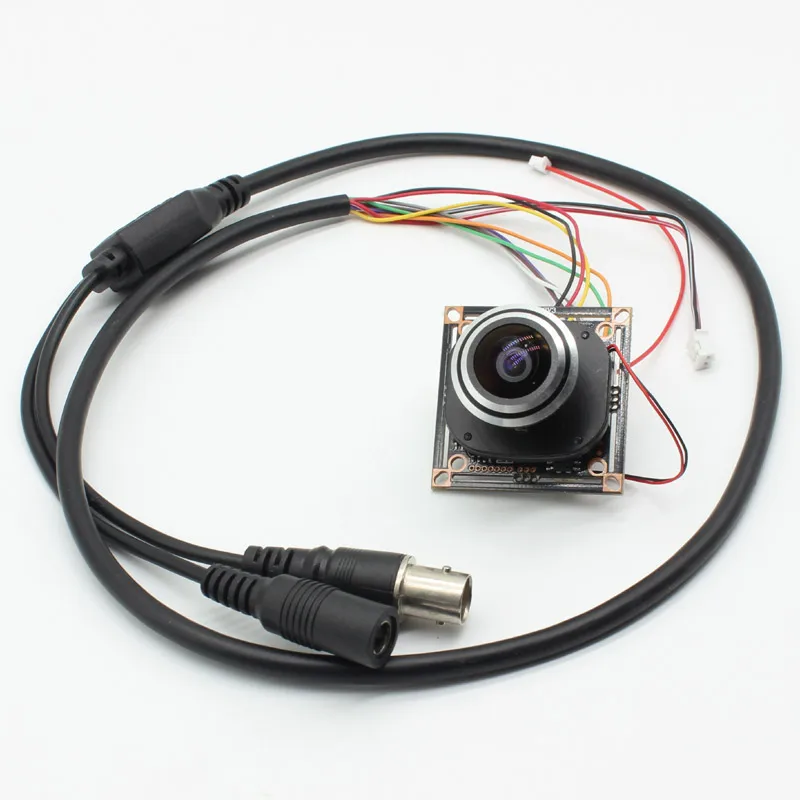

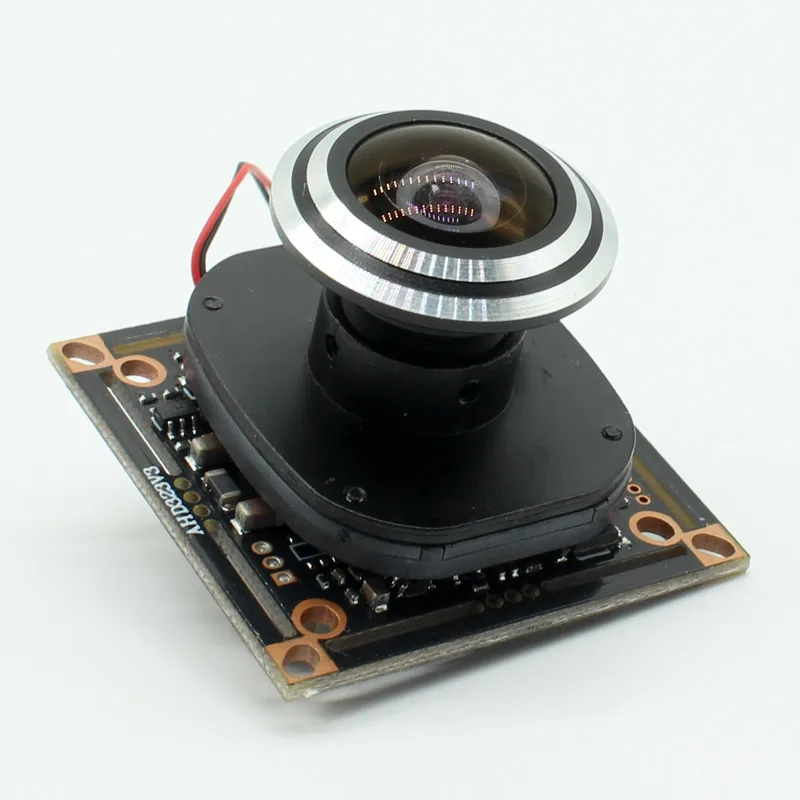

With 1.7mm fisheye lens:

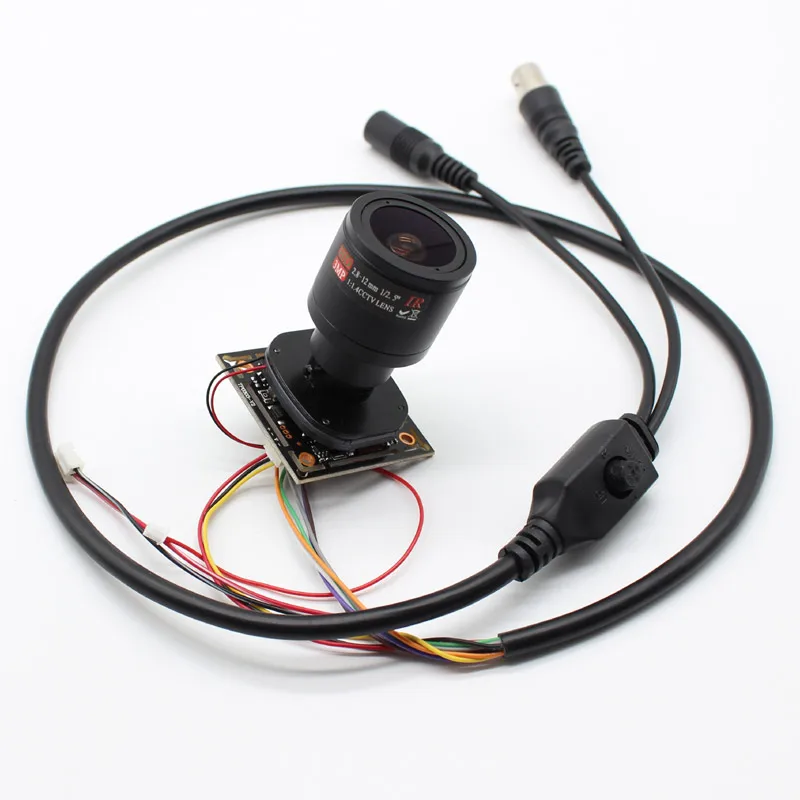

With 2.8-12mm lens:
