Surveillance Cameras>>>Security & Protection
Brand Name MAMICAM
Type ip camera
Supported Operating Systems windows xp
Supported Operating Systems Windows 7
Supported Operating Systems Windows 8
Supported Operating Systems Windows 10
High Definition 1080P(Full-HD)
Lens (mm) 3.6mm
Style Dome Camera
Certification CE
Connectivity 4g
Smart home platform NONE
Origin CN(Origin)
Installation Side
Wall Bracket Side
Power Consumption(W) DC12V2A
Color white
Minimum Illumination(Lux) 0.01LUX
Sensor CMOS
Megapixels 2MP
Sensor Brand Aptina
Special Features Waterproof / Weatherproof
Storage 128G
Alarm Action FTP Photo
Alarm Action Email Photo
Alarm Action Local Alarm
Video Compression Format H.264
Power Supply Normal
TF Card None
IR Distance(m) 60m
is_customized Yes
Power Supply(V) V
Model Number B-4G
Viewing Angle 360°
Dimensions (L x W x D)(mm) 17.5*15.5*11.5cm
Supported Mobile Systems Windows Mobile
Supported Mobile Systems Android
Supported Mobile Systems iOS
Network Interface 4g
Audio Output 1CH BNC
Sensor Size
4G Module Only
4G With Lan Cable
Attention: Hi, if you need a long extend power plug cable , you can click on the picture below to by this extension cable. There is 3M/5M/10M/15M/20M Optional.（If the installation place is not near to the power supply, maybe you need this extension cable.）

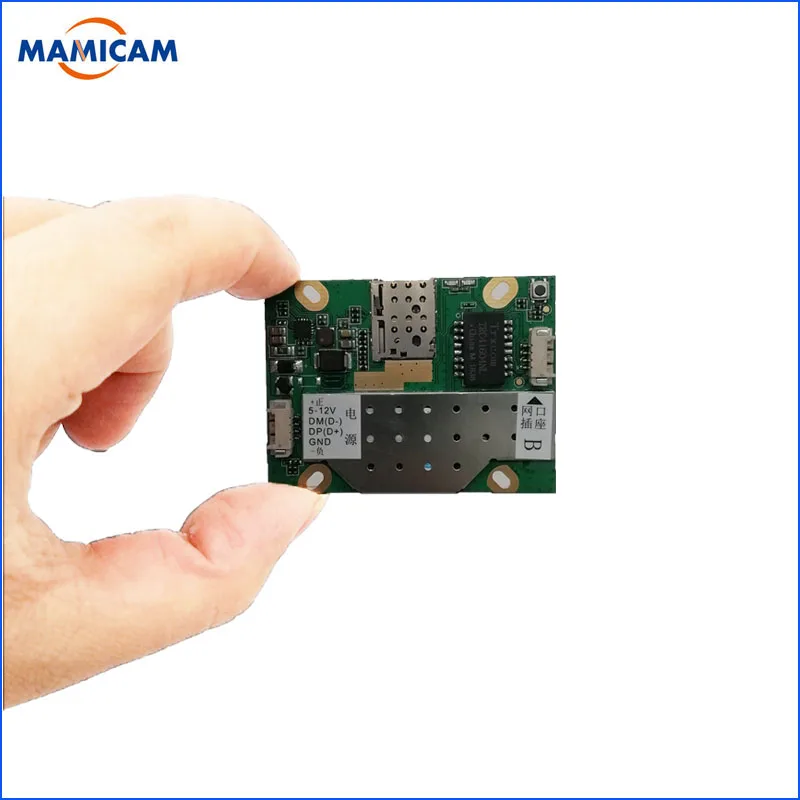

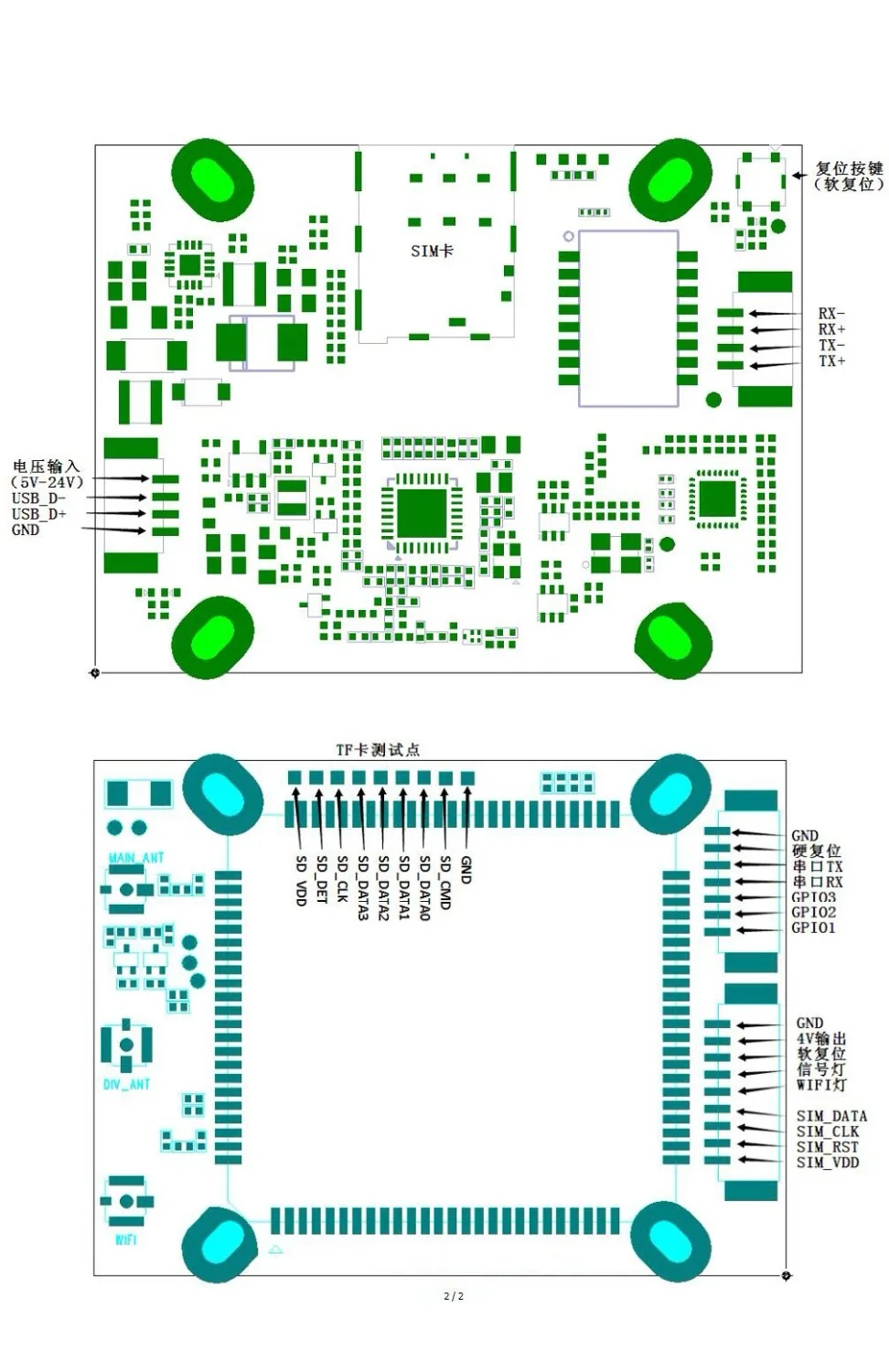

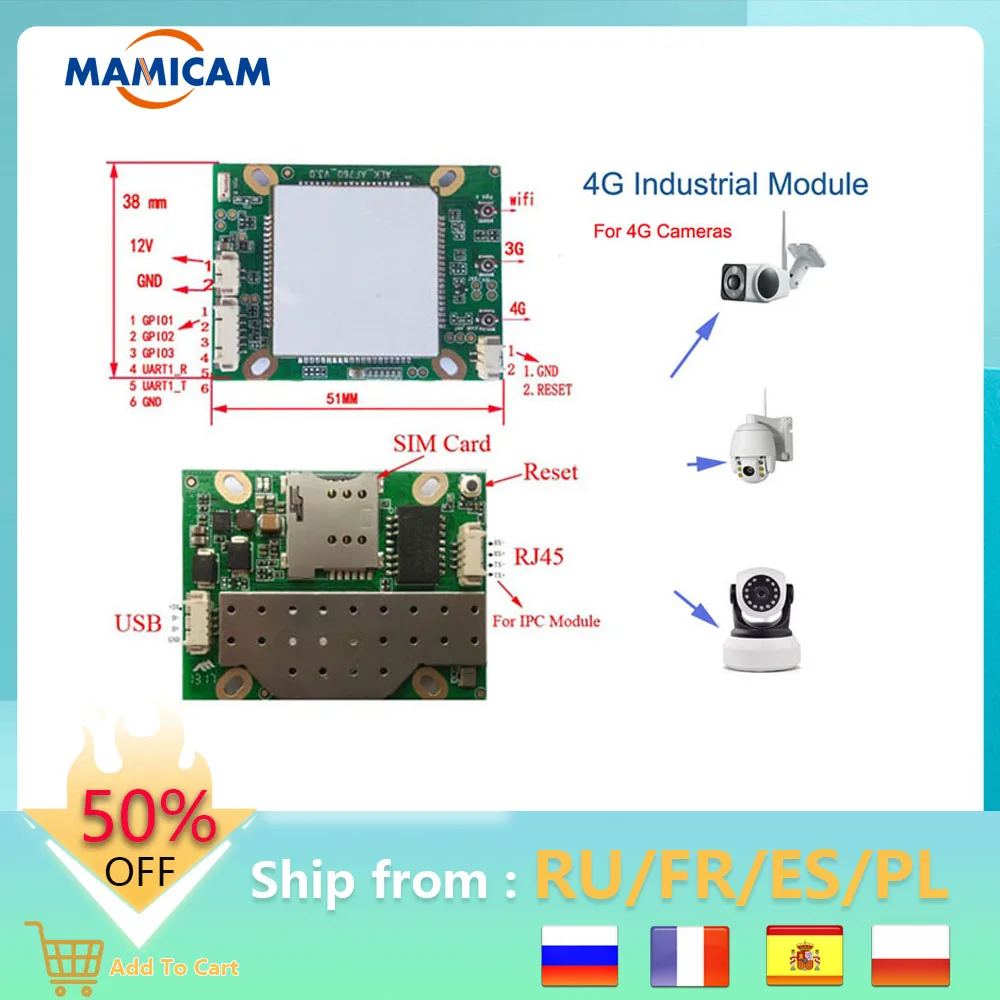

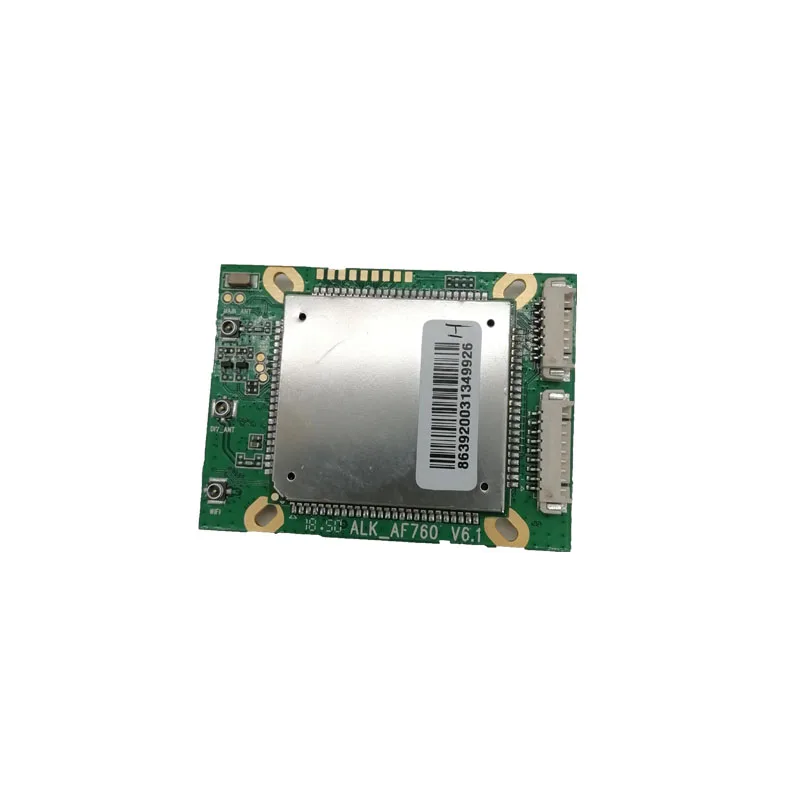

4G module (default)Gateway IP:192.168.100.1User name:adminPassword:adminAP hot name:MIFI_XXXXPassword:1234567890Attention:1. Wear anti-static bracelet or gloves before work2. Please wiring in order3. The USB interface is similar to the NIC interface, so please follow the illustration,so as not to burn down the settings4.12V power interface, positive and negative pole should not connect in a wrong wayConnection mode:USB couplet (need drive support)LAN port coupletWireless WIF coupletIndustrial 4G moduleSupport 4G/3G/2G+Wi-Fi wireless access4G wireless transmission rate up to 150MbpsCan support 8 users accessing WIFI hotspotsApplication field:Security industry (video surveillance)Self-help terminal equipmentIntelligent express cabinetPublic bicycleIntelligent Industry Control Smart HomeCitroen connectHandheld law enforcement terminalAcquisition equipmentIndustrial router3C product Intelligent charging pile
Please check the band frequency:
